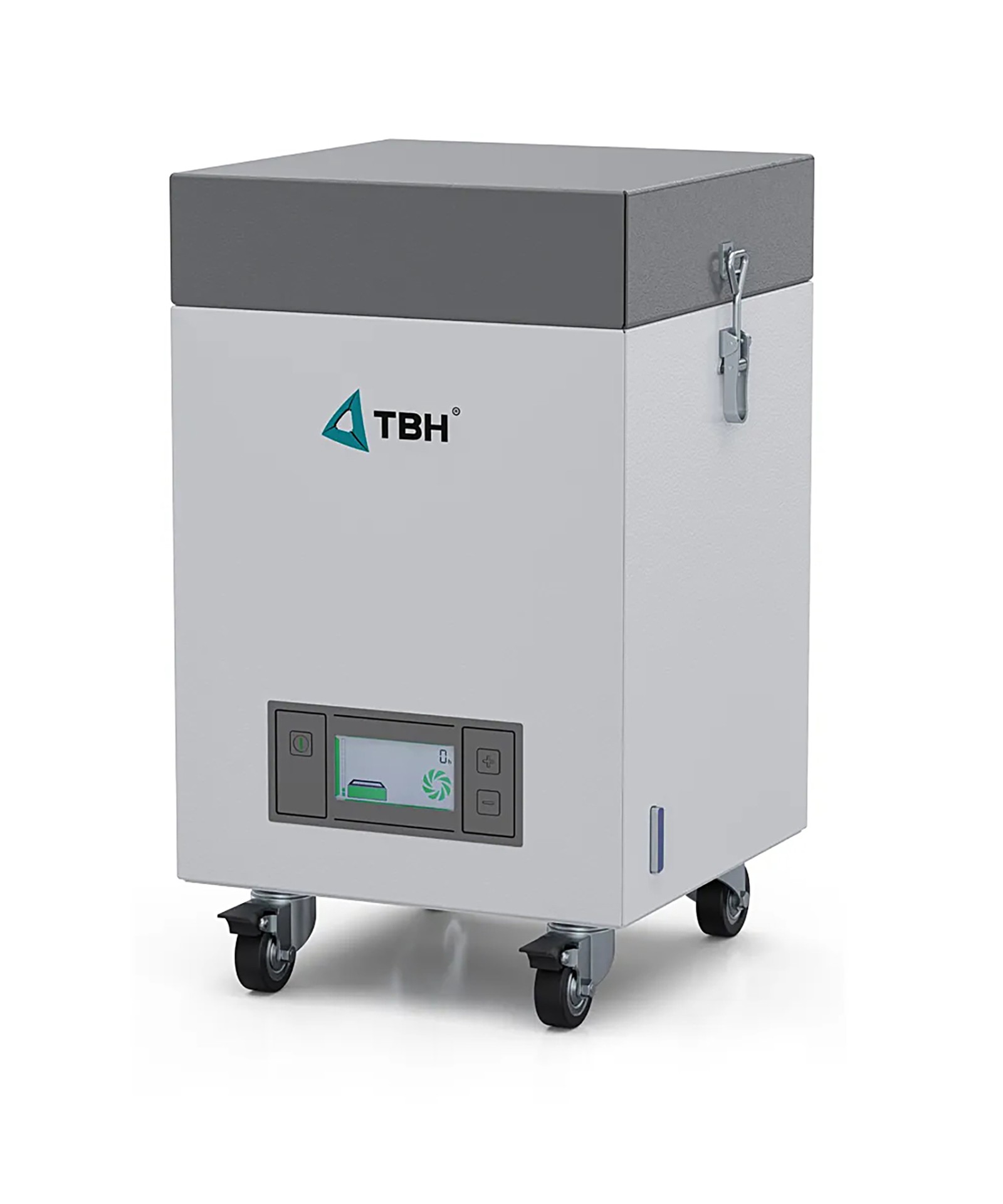

What is the BF 9?
Extraction and Filtration system
The BF 9 extraction system traps dust particles, toxic gases, and dangerous airborne microparticles that may contain infectious chemicals, bacteria, and viruses. It is a product of the German company TBH, which has been dedicated to environmental protection since 1992. The BF 9 model features a powerful carbon-operated motor, essential electronic control systems, and a 2-stage filter. It is designed as a portable suction solution for occasional use, < 1 hour per day.
Applications
- Laser procedures in aesthetic surgery
- Skin resurfacing (Resurfacing, CO2)
- Hair removal
- Pigmentation lesions and tattoo removal
- Dentistry
- Endoscopic Surgery
- Electrotherapy
Why it stands out
- Powerful motor.
- High adsorption capacity with activated carbon granules (optional).
- Tool-free filter replacement.
- Articulated and flexible. Can be adapted for different procedures.
- Collects every harmful particle. Integrated HEPA filter with 99.95% efficiency for particles as small as 0.1μm and 7 liters of activated carbon.
- Easy handling – start/stop via optional foot switch or interface.
- Differential pressure indicator for monitoring filter saturation.
- Easy and clean filter replacement from the top.
- Manufacturer with over 30 years of experience in extraction technology.
- Certified system.
Features and Performance
- Airflow rate: max. 220 m³/h
- Active airflow rate (adsorption capacity): 20 – 200 m³/h
- Maximum static pressure: 14,000 Pa
- Electrical voltage: 230/120 V
- Frequency: 50/60 Hz
- Motor power: 0.7 kW
- Noise level: ~ 64dB
- Filter configuration: 2-stage filter (H13 particle filter + activated carbon filter)
- Exhaust arm with four optional air intake ports
- Electronic features and display functions
- Weight: ~ 24 kg
- Dimensions (HxWxD): 510x300x300 mm
